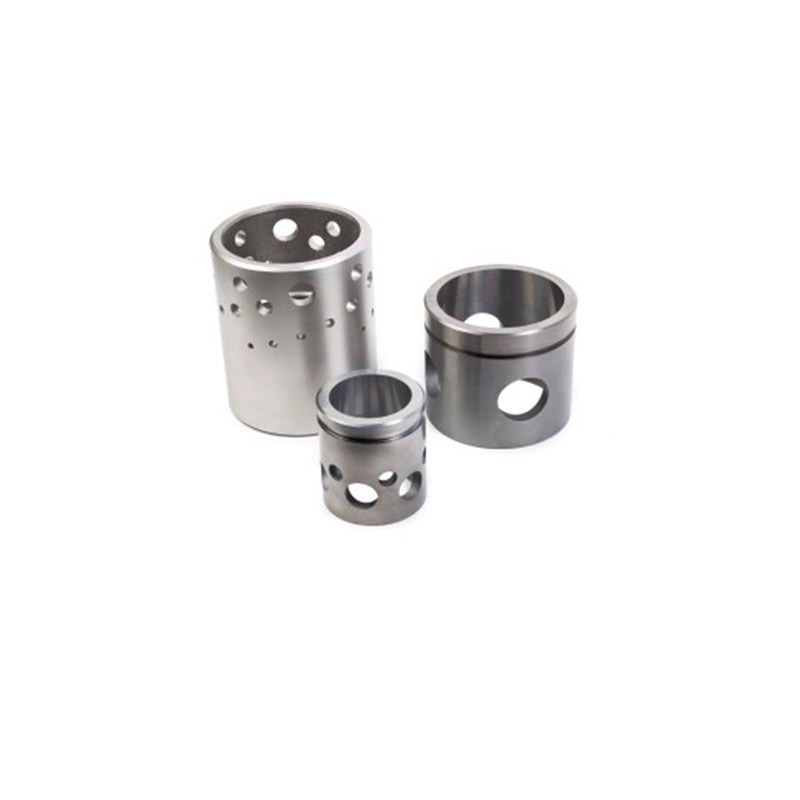

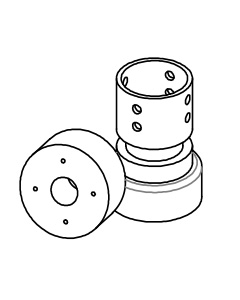

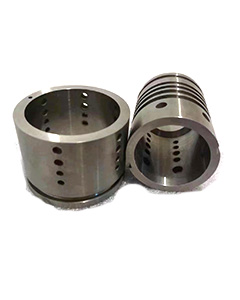

In the throttle valve, the multi-layer cage sleeve has the functions of anti-cavitation, noise reduction and vibration avoidance. Different types of cage sleeves are selected for different working conditions, and the flow rate and noise conditions are reasonably controlled within a reasonable range. Under harsh conditions, the petrochemical industry (such as liquid pressure drop >150bar or containing granular impurities) has erosion, corrosion, flash, cavitation, etc., tungsten carbide valve internals are recommended.
Performance advantage
| 1 | High hardness (hardness >80HRC),· High temperature resistance (sintering temperature core 1400°C) | |
| 2 | High pressure resistance (transverse fracture strength up to 3200MPa) | |
| 3 | Corrosion resistance (does not interact with hydrochloric acid and sulfuric acid, will not be dissolved in aqua regia) | |
| 4 | Wear resistance (meet the special medium wear requirements of pulverized coal and silicone (silicon particle hardness is 62HRC).· | |
| 5 | Erosion resistance (at 450℃ temperature (other working conditions are the same) the service life is up to N months, frequent switching times up to N million). | |
