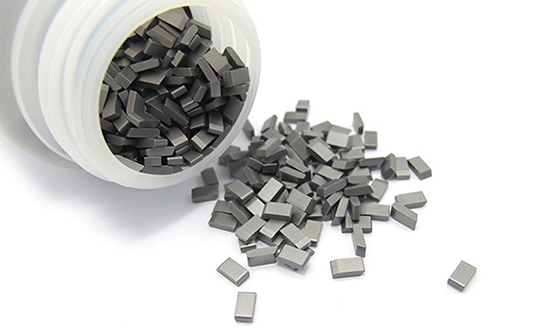

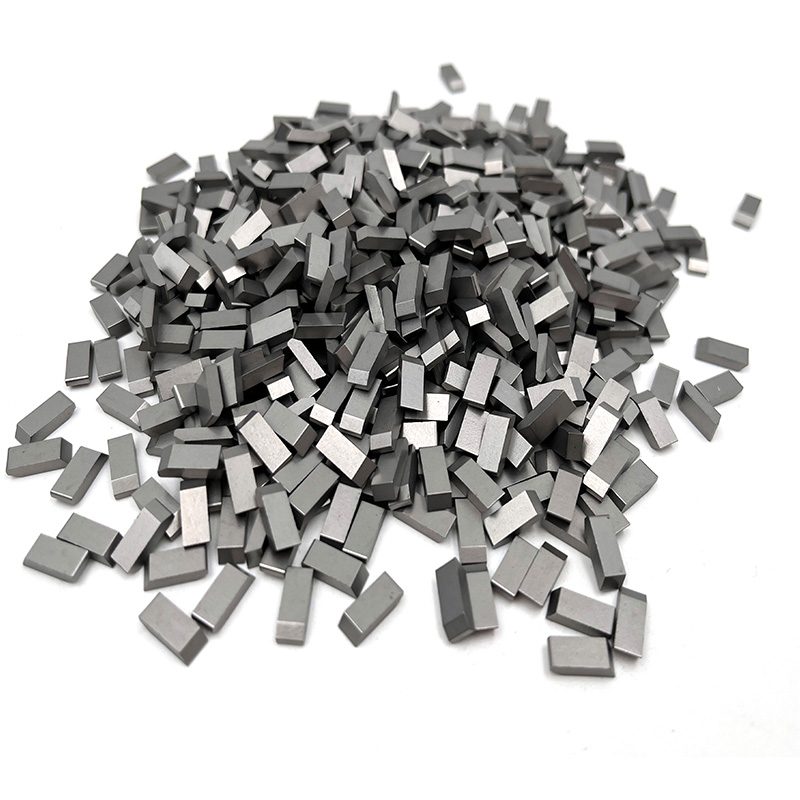

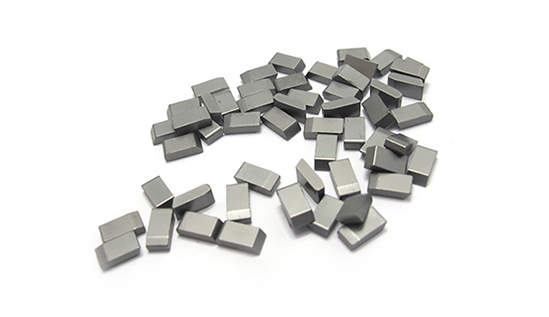

| Product Name | Carbide Saw Tips | ||
| Tps | ≥2500 | Origin | Zhuzhou |
| Hardness | 93.5 | Application | Cutting wood, metal, industrial matrial |
| Unit | KG | Grade | YG6,YG8,YK08,JX5 etc |
|
Grade |
Density (g/cm3) |
Hardness (HRA) |
TRS (MPa) |
Average Grain size (ųm) |
|
YG6/ K20 |
14.85～15.05 |
≥90.5 |
≥1860 |
In |
|
YG8/K30 |
14.60～14.85 |
≥89.7 |
≥2060 |
In |
|
YK08/K40 |
14.50～14.80 |
≥88.0 |
≥2060 |
Coarse |
|
JX5/K20 |
14.65～14.85 |
≥90.0 |
≥2060 |
In |
|
YG6X/K10 |
14.70～14.85 |
≥91.7 |
≥1860 |
Fine |
|
YG8X/K10 |
14.60～14.85 |
≥91.0 |
≥2000 |
Fine |
|
K10S |
14.70～14.85 |
≥91.7 |
≥3000 |
Fine |
|
K20S |
14.60～14.80 |
≥91.0 |
≥3000 |
Fine |
|
K10UF |
14.70～14.95 |
≥93.0 |
≥3000 |
Superfine |
|
K20UF |
14.50～14.80 |
≥92.0 |
≥3000 |
Superfine |
|
K30UF |
14.25～14.55 |
≥91.0 |
≥3050 |
Superfine |
|
R06 |
14.70～14.85 |
≥93.5 |
≥2400 |
Superfine |
|
R03 |
14.90～15.10 |
≥94.0 |
≥2000 |
Superfine |
|
YC40 |
12.80～13.30 |
≥89.5 |
≥1700 |
In |
|
YC501 |
12.70～13.30 |
≥90.5 |
≥1680 |
In |
1, Suitable for all kinds of logs, hard wood, and recycled wood carbide cutting saw blade.
2, Suitable for wood board, plywood, high density board and paint board cutting saw blade.
3, Suitable for aluminum, brass, iron and other low hardness metal materials carbide cutting saw blade.
4, Suitable for plastic, plastic, PVC and other non-metallic material cutting saw blade.
5, Suitable for all kinds of grass cutting alloy cutting saw blade.
| Grade | Application |
| YG6/ K20 | For the cutting of ordinary wood, Recommend to use resistance welding,andthetemperature should not be too high |
| YG8/K30 | For the cutting of the ordinary wood,also for the aluminum, Recommend to useresistance welding,and the temperature should not be too high |
| YK08/K40 | For the cutting of the recycling wood especially for some iron nails and stones in it,Recommend to use resistance welding,and the temperature should not be too high |
| JX5/K20 | For the cutting of the hard wood/recycling wood and aluminum,Recommend touseresistance welding, and the temperature should not be too high |
| YG6X/K10 | For the cutting of the wood specially, recommend to use the high frequency welding |
| YG8X/K10 | For the cutting of the wood and aluminum specially, Recommend to use the high frequency welding |
| K10S | For the cutting of the hard wood specially, Recommend to use the high |
| K20S | For the cutting of the aluminum specially, Recommend to use the high frequencywelding |
| K10UF | For the cutting of the plywood board with middle to high density and the compoundmaterials with aluminum and plasic, Use the high frequency welding |
| K20UF | For the cutting of the aluminum specially, Use the high frequency welding |
| K30UF |
For the cutting of the stones specially, Use the high frequency welding |
| RO6 |
For the cutting of the plywood density board and the sandwich board, Use thehighfrequency welding |
RO3 |
For the cutting of the timber such as shaving board laminated boar density board and compound material etc, Use the high frequency welding |
| YC40 |
For the cutting of the large cast materials, Recommend to use the high frequency welding |
| YC501 |
For the cutting of the steel and the stainless steel, Recommend to use the high frequency welding |
