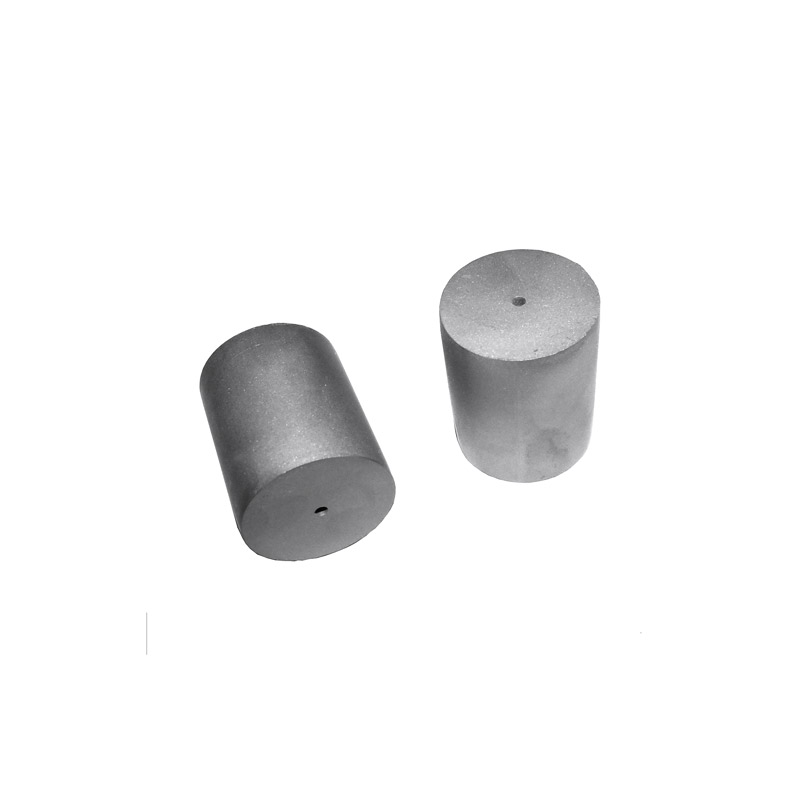

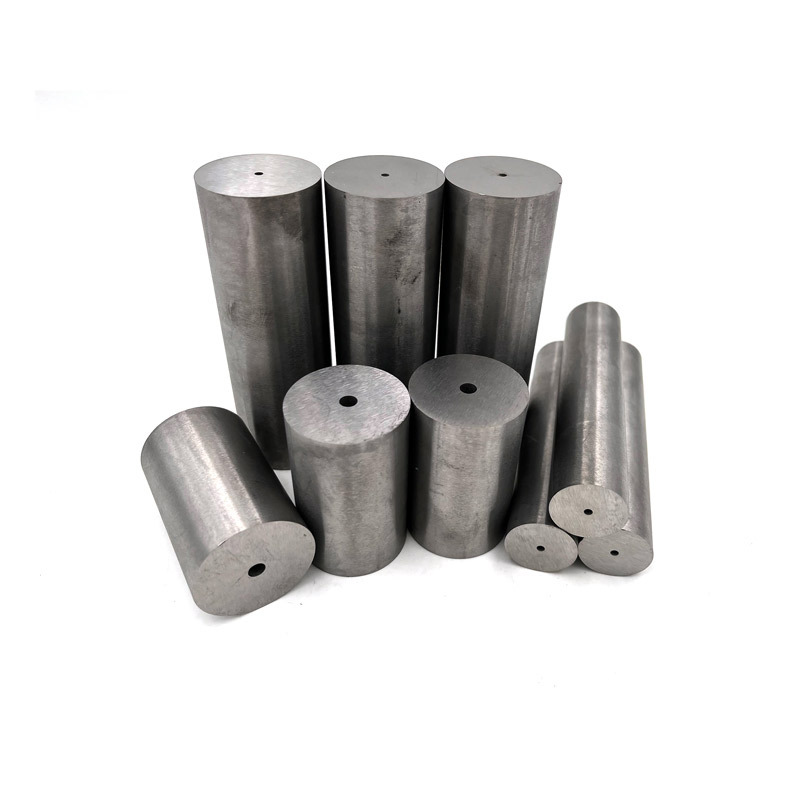

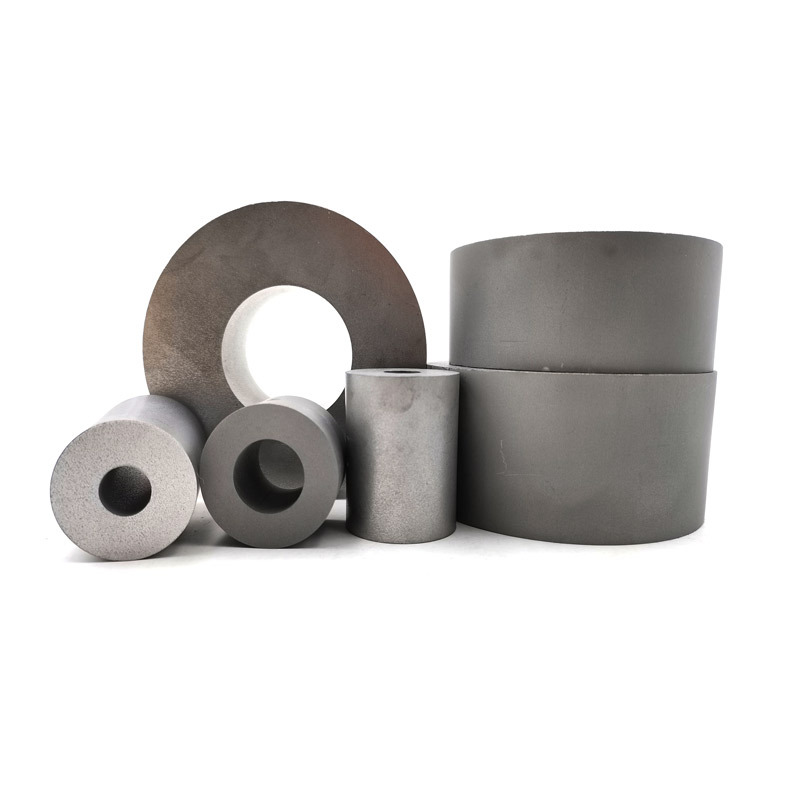

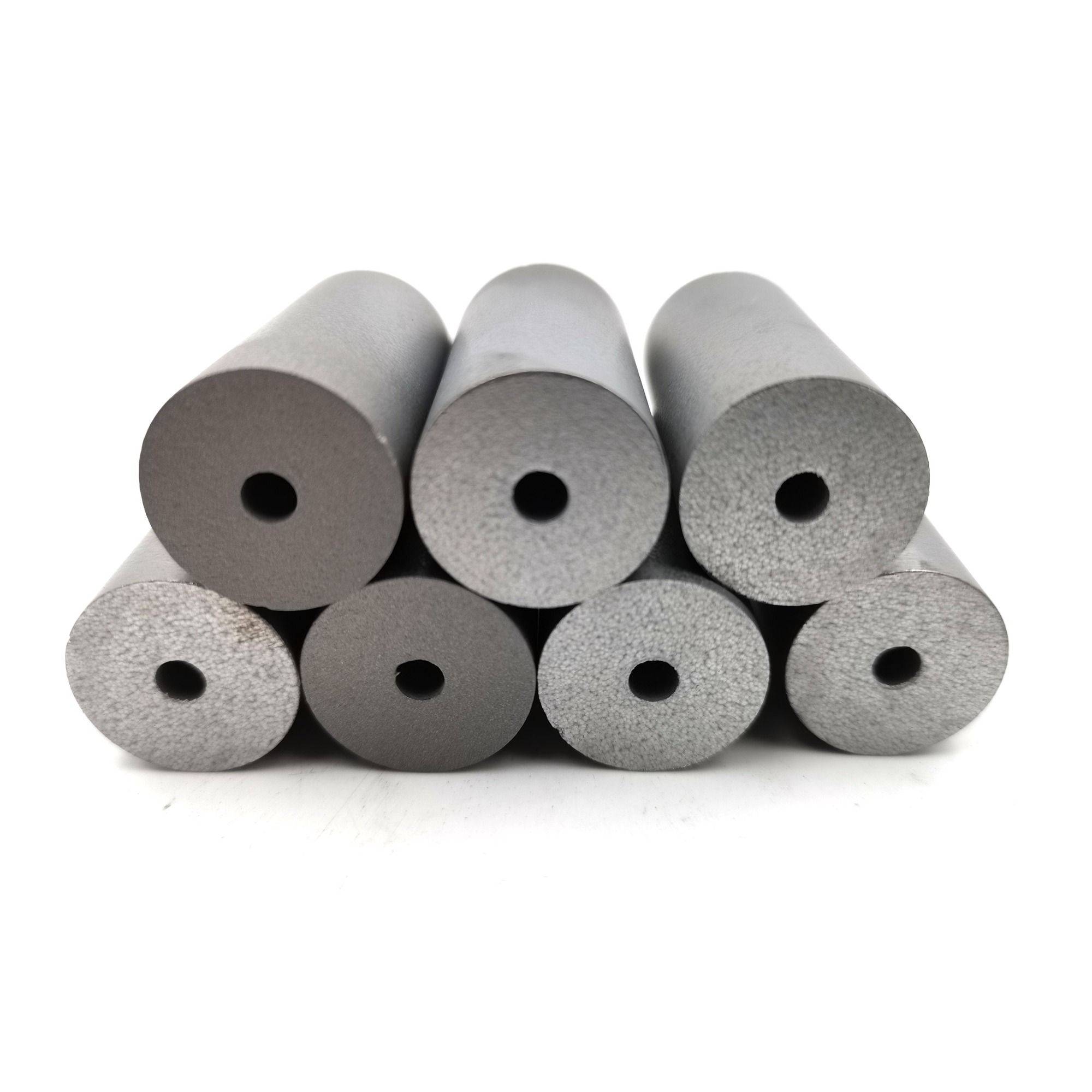

| GRADE | DENSITY (g/cm3) |
TRS (N/mm2) |
HARDNESS (HRA) |
Application recommended |
| YG11 | 14.4 | 2600 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. |
| YG15 | 14.0 | 2800 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching,stamping,forging tools under large stress. |
| YG20 | 13.5 | 3200 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. |
| YG16C | 13.9 | 2900 | 85.5 | Impact resistance forging dies. |
| G18C | 13.7 | 3100 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. |
| YG20C | 13.5 | 3300 | 83.5 | Dies for wear resistant or impact resistant application. |
| YG22C | 13.3 | 3500 | 83.0 | Nut forming dies and high impact resistance forging dies |
| YG25C | 13.1 | 3600 | 82.5 | Stainless bolt header dies and rollers. |
| Nominal inner dia. | Nominal length | |||
| ≤18 | >18-30 | >30-50 | >50 | |
| ≤6 | 0-0.45 | 0-0.55 | 0-0.65 | - |
| >6-10 | 0-0.50 | 0-0.60 | 0-0.70 | 0-0.80 |
| >10-14 | 0-0.55 | 0-0.70 | 0-0.80 | 0-0.90 |
| >14-18 | 0-0.60 | 0-0.80 | 0-0.90 | 0-1.00 |
| >18-24 | 0-0.65 | 0-0.90 | 0-1.00 | 0-1.10 |
| >24 | 0-0.70 | 0-1.00 | 0-1.10 | 0-1.20 |
| Type | Dimension | Range of applications |
||
| d | D | L Range of L |
||
| BDP00710- | 0.7 | 10 | 12.0~20.0 | M1 |
| BDP01010- | 1.0 | 10 | 12.0~20.0 | M1.5~M2 |
| BDP01013- | 1.0 | 13 | 15.4-40.0 | M1.5~M2 |
| BDP01213- | 1.2 | 13 | 15.4-40.0 | M1.5~M2 |
| BDP01510- | 1.5 | 10 | 12.0~25.0 | M2 |
| BDP01516- | 1.5 | 16 | 15.0-45.0 | M2 |
| BDP01813- | 1.8 | 13 | 12.0~35.0 | M2.5 |
| BDP01816- | 1.8 | 16 | 20.0-45.0 | M2.5 |
| BDP02113- | 2.1 | 13 | 15.0~30.0 | M3 |
| BDP02116- | 2.1 | 16 | 25.0-45.0 | M3 |
| BDP02316- | 2.3 | 16 | 15.0-45.0 | M3 |
| BDP02522- | 2.5 | 22 | 20.0-60.0 | M3 |
| BDP02813- | 2.8 | 13 | 15.0~30.0 | M4 |
| BDP02816- | 2.8 | 16 | 25.0-40.0 | M4 |
| BDP02818- | 2.8 | 18 | 20.0-50.0 | M4 |
| BDP02820- | 2.8 | 20 | 20.0-50.0 | M4 |
| BDP02822- | 2.8 | 22 | 20.0-60.0 | M4 |
| BDP02825- | 2.8 | 25 | 20.0-60.0 | M4 |
| BDP03216- | 3.2 | 16 | 15.0-45.0 | M4 |
| BDP03218- | 3.2 | 18 | 15.0-50.0 | M4 |
| BDP03616- | 3.6 | 16 | 20.0-50.0 | M5 |
| BDP03618- | 3.6 | 18 | 20.0-60.0 | M5 |
| BDP03822- | 3.8 | 22 | 20.0~40.0 | M5 |
| BDP03830- | 3.8 | 30 | 50.0~60.0 | M5 |
| BDP04218- | 4.2 | 18 | 20.0-60.0 | M5 |
| BDP04616- | 4.6 | 16 | 20.0~30.0 | M6 |
| BDP04622- | 4.6 | 22 | 35.0~60.0 | M6 |
| BDP05422- | 5.4 | 22 | 20.0~60.0 | M6 |
| BDP06422- | 6.4 | 22 | 20.0~60.0 | M8 |
| BDP06425- | 6.4 | 25 | 20.0~50.0 | M8 |
| BDP06430- | 6.4 | 30 | 25.0~60.0 | M8 |
| BDP07230- | 7.2 | 30 | 20.0~60.0 | M10 |
| BDP08230- | 8.2 | 30 | 20.0~60.0 | M10 |
| BDP08235- | 8.2 | 35 | 30.0~60.0 | M10 |
| BDP09230- | 9.2 | 30 | 20.0~60.0 | M12 |
| BDP10030- | 10.0 | 30 | 20.0~60.0 | M12 |
| BDP10035- | 10.0 | 35 | 30.0~60.0 | M12 |
| BDP11235- | 11.2 | 35 | 20.0~60.0 | M12 |
| BDP11240- | 11.2 | 40 | 20.0~60.0 | M12 |
| BDP11835- | 11.8 | 35 | 20.0~60.0 | M14 |
| BDP11840- | 11.8 | 40 | 25.0~30.0 | M14 |
| BDP13235- | 13.2 | 35 | 25.0~60.0 | M14 |
| BDP13240- | 13.2 | 40 | 25.0~50.0 | M14 |
| BDP13835- | 13.8 | 35 | 20.0~60.0 | M16 |
| BDP13840- | 13.8 | 40 | 25.0~35.0 | M16 |
| BDP14445- | 14.4 | 45 | 25.0~60.0 | M16 |
| BDP15445- | 15.4 | 45 | 30.0~50.0 | M18 |
| BDP16445- | 16.4 | 45 | 25.0~60.0 | M20 |
| BDP17445- | 17.4 | 45 | 25.0~60.0 | M20 |
| BDP19445- | 19.4 | 45 | 25.0~55.0 | M22 |
| BDP21050- | 21.0 | 50 | 25.0~55.0 | M24 |
| BDP24460- | 24.4 | 60 | 30.0~50.0 | M27 |
| Nominal length | ≤18 | >18-30 | >30-50 | >50 |
| Flatness ≤ | 0.30 | 0.35 | 0.40 | 0.55 |
