Grade |
Density (g/cm3) |
Hardness (HRA) |
TRS (MPa) |
|
K10/YG6X |
14.95 |
91.5 |
1800 |
|
K20/YG6 |
14.95 |
90.5 |
1900 |
|
P10/YT15 |
11.4 |
91.5 |
1600 |
|
P20/YT14 |
11.6 |
90.8 |
1700 |
|
P30/YT5 |
12.9 |
90.5 |
2200 |
|
M10/ YW1 |
13.10 |
91.6 |
1600 |
|
M20/ YW2 |
13.00 |
90.6 |
1800 |
|
Grade |
Applications recommended |
|
K10/YG6X |
The finishing & semi-finishing of cast iron and nonferrous metals and also for the machining of manganese steel and hardening steel. |
|
K20/YG6 |
Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel. |
|
P10/YT15 |
Suitable for the finishing and semi-finishing for steel and cast steel with a moderate feed rate and rather high cutting speed. |
|
P20/YT14 |
Suitable for the finishing and semi-finishing of steel and cast steel. |
|
P30/YT5 |
Suitable for the heavy duty rough turning of and cast steel with a big feed rate at a medium and low speed under unfavorable working conditions. |
|
M10/ YW1 |
Suitable for finishing and semi-finishing of stainless steel and conventional alloy steel. |
|
M20/ YW2 |
The grade can be used for the semi-finishing of stainless steel and low-alloy steel and it is mainly used for the machining of railway wheel hubs. |

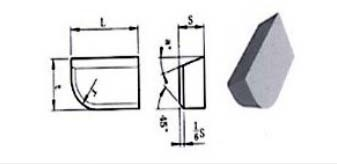

Series of A
|
Type |
Dimensions |
||||
|
L |
t |
s |
r |
α° |
|
|
A6 |
6 |
4 |
2.5 |
2.5 |
- |
|
A8 |
8 |
5 |
3 |
3 |
|
|
A10 |
10 |
6 |
4 |
4 |
- |
|
A12 |
12 |
8 |
5 |
5 |
18 |
|
A16 |
16 |
10 |
6 |
6 |
18 |
|
A20 |
20 |
12 |
7 |
7 |
18 |
|
A25 |
25 |
14 |
8 |
8 |
18 |
|
A32 |
32 |
18 |
10 |
10 |
18 |
|
A40 |
40 |
22 |
12 |
12 |
18 |
|
A50 |
50 |
25 |
14 |
14 |
18 |
Series of B
|
Type |
Dimensions |
||||
|
L |
t |
s |
r |
α° |
|
|
B5 |
5 |
3 |
2 |
2 |
- |
|
B6 |
6 |
4 |
2.5 |
2.5 |
- |
|
B8 |
8 |
5 |
3 |
3 |
- |
|
B10 |
10 |
6 |
4 |
4 |
18 |
|
B12 |
12 |
8 |
5 |
5 |
18 |
|
B16 |
16 |
10 |
6 |
6 |
18 |
|
B20 |
20 |
12 |
7 |
7 |
18 |
|
B25 |
25 |
14 |
8 |
8 |
18 |
|
B32 |
32 |
18 |
10 |
10 |
18 |
|
B40 |
40 |
22 |
12 |
12 |
18 |
|
B50 |
50 |
25 |
14 |
14 |
18 |
Series of C
|
Type |
Dimensions |
|||
|
L |
t |
s |
α° |
|
|
C5 |
5 |
3 |
2 |
- |
|
C6 |
6 |
4 |
2.5 |
- |
|
C8 |
8 |
5 |
3 |
- |
|
C10 |
10 |
6 |
4 |
18 |
|
C12 |
12 |
8 |
5 |
18 |
|
C16 |
16 |
10 |
6 |
18 |
|
C20 |
20 |
12 |
7 |
18 |
|
C25 |
25 |
14 |
8 |
18 |
|
C32 |
32 |
18 |
10 |
18 |
|
C40 |
40 |
22 |
12 |
18 |
|
C50 |
50 |
25 |
14 |
18 |
Series of D
|
Type |
Dimensions |
||
|
L |
t |
s |
|
|
D3 |
3.5 |
8 |
3 |
|
D4 |
4.5 |
10 |
4 |
|
D5 |
5.5 |
12 |
5 |
|
D6 |
6.5 |
14 |
6 |
|
D8 |
8.5 |
16 |
8 |
|
D10 |
10.5 |
18 |
10 |
|
D12 |
12.5 |
20 |
12 |
Series of E
|
Type |
Dimension |
|||
|
L |
t |
s |
α° |
|
|
E4 |
4 |
10 |
2.5 |
- |
|
E5 |
5 |
12 |
3 |
- |
|
E6 |
6 |
14 |
3.5 |
9 |
|
E8 |
8 |
16 |
4 |
9 |
|
E10 |
10 |
18 |
5 |
9 |
|
E12 |
12 |
20 |
6 |
9 |
|
E16 |
16 |
22 |
7 |
9 |
|
E20 |
20 |
25 |
8 |
9 |
|
E25 |
25 |
28 |
9 |
9 |
|
E32 |
32 |
32 |
10 |
9 |
