Tungsten Carbide STB
Tungsten Carbide STB Tungsten Carbide STB Tungsten Carbide STB Tungsten Carbide STB Tungsten Carbide STB Tungsten Carbide STB
  • Tungsten Carbide STB
  • Tungsten Carbide STB

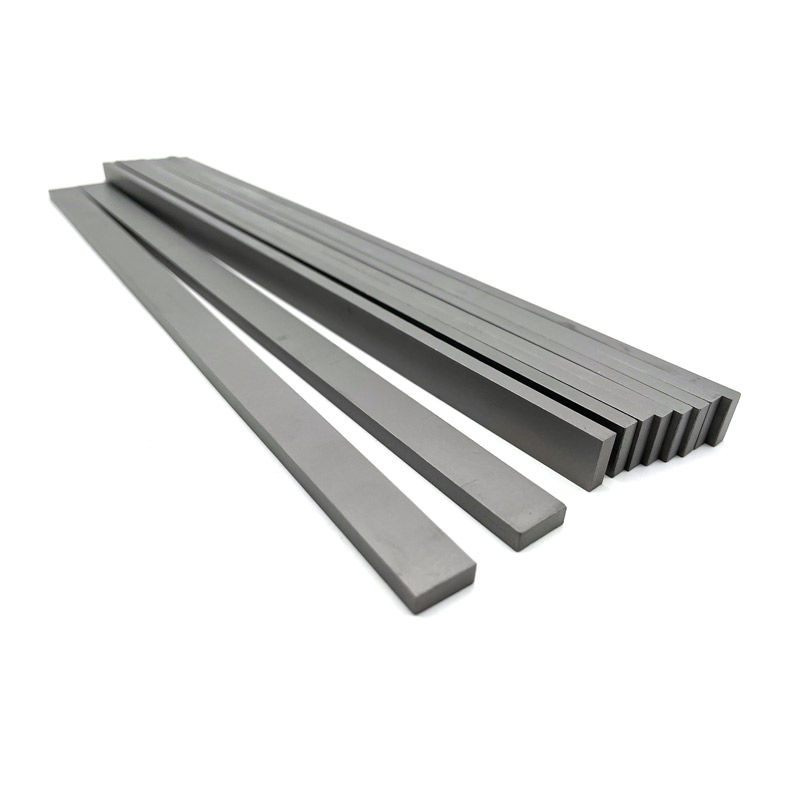

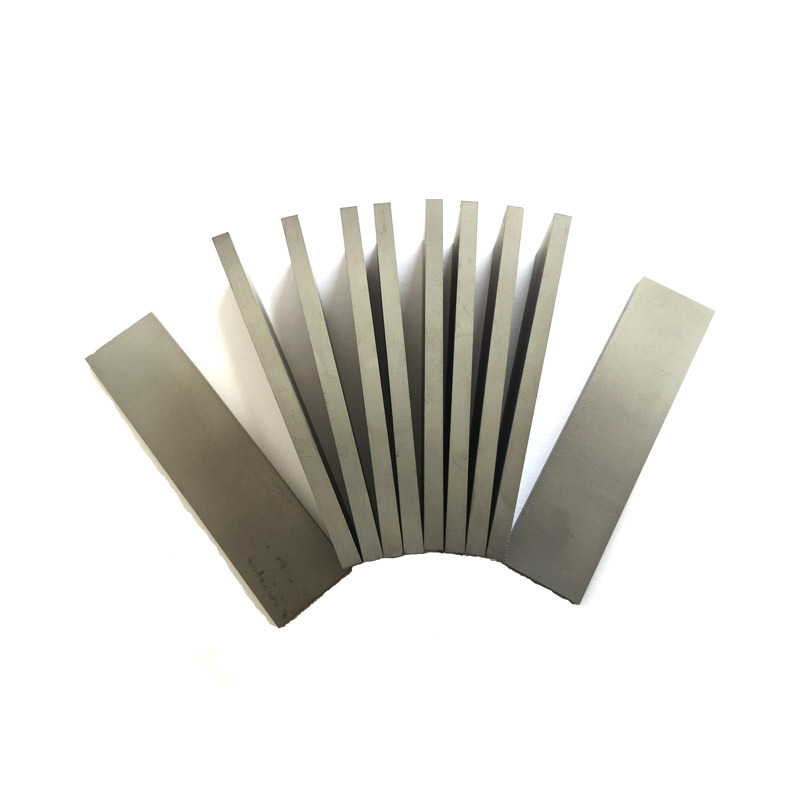

Tungsten Carbide STB

Item No.: STB001
Tungsten carbide STB blanks is used as the cutter for the TCT woodworking knives for cutting all kinds of original wood, hard wood, HDF, MDF, plywood, particle board, laminated board, composite material, grass, aluminum and metals. It can give much more e
Add to Inquiry
Description
Description


High hard ness, wear-resistance, and resistance to bending. Tungsten carbide bars or strip has high hardness and high wear resistance, it is a ideal choice to used in cutting kinds of wood.
With high quality raw material and advanced equipment, Ruiao  carbide provides customer superior quality carbide strips.
1.Easy to be brazed, good wear resistance and toughness.
2.Untrafine grain size raw material to keep excellent strength and hardness.
3.Both standard sizes and customizes sizes are available.
Grade:
Grade Density (g/cm3) Hardness(HRA) TRS(MPa)
YG6 14.95 90.5 1900
YG6X 14.95 91.5 1800
YG8 14.8 89.5 2200
YL10.2 14.5 91.8 2400
YG15 14 87.5 2800
VA95 13.1 84 2900

Dimension and Tolerance
Dimensions and Tolerance (mm)
Length(mm) Tolerance Width(mm) Tolerance H Tolerance
<=80<> +0/+1.6 <=10<> +0/+0.5 <=3.0<> +0/+0.3
>80~100 +0/+2.5 >10~20 +0/+0.6 >3~5 +0/+0.4
>100~150 +0/+3.0 >20~30 +0/+0.6 >5~8 +0/0.5
>150~200 +0/+4.0 >30~40 +0/+1.0 >8~10 +0/+0.8
>200~300 +0/+5.0 >50 +0/+1.5 >10 +0/+0.8
>300 +0/+6.0 ---- ---- ---- ----
Length:330 or 310 mm or cut to lenths upon requirements.

Size

Item #

Dimension

T

W

L

STB-12

1/32

1/16

1

STB-12A

1/32

1/16

1-1/2

STB-13A

3/64

3/32

13/16

STB-13

3/64

3/32

1

STB-22L

1/16

1/16

6

STB-24A

1/16

1/8

1

STB-24C

1/16

1/8

1-1/4

STB-24D

1/16

1/8

1-1/2

STB-24B

1/16

1/8

3

STB-24L

1/16

1/8

6

STB-26A

1/16

3/16

1

STB-26C

1/16

3/16

3

STB-26L

1/16

3/16

6

STB-28A

1/16

1/4

1

STB-28B

1/16

1/4

1-1/4

STB-28D

1/16

1/4

3

STB-28L

1/16

1/4

6

STB-210L

1/16

5/16

6

STB-212L

1/16

3/8

6

STB-216L

1/16

1/2

6

STB-220L

1/16

5/8

6

STB-224L

1/16

3/4

6

STB-232L

1/16

1

6

STB-14

5/64

1/8

1-1/8

STB-34

3/32

1/8

5

STB-34L

3/32

1/8

8

STB-36

3/32

3/16

1-1/8

STB-36A

3/32

3/16

1-1/4

STB-36L

3/32

3/16

8

STB-38A

3/32

1/4

1

STB-38B

3/32

1/4

1-1/2

STB-38D

3/32

1/4

5

STB-38L

3/32

1/4

8

STB-310A

3/32

5/16

2

STB-310B

3/32

5/16

3

STB-310C

3/32

5/16

5

STB-310L

3/32

5/16

8

STB-312

3/32

3/8

5

STB-312C

3/32

3/8

6

STB-312L

3/32

3/8

8

STB-316

3/32

1/2

6

STB-316L

3/32

1/2

8

STB-320

3/32

5/8

6

STB-320L

3/32

5/8

8

STB-324

3/32

3/4

6

STB-328

3/32

7/8

6

STB-332

3/32

1

6

STB-336

3/32

1-1/8

6

STB-340

3/32

1-1/4

6

STB-348

3/32

1-1/2

6

STB-44L

1/8

1/8

12

STB-46

1/8

3/16

6

STB-44L

1/8

3/16

12

STB-48A

1/8

1/4

1

STB-48B

1/8

1/4

1-1/4

STB-48F

1/8

1/4

1-1/2

STB-48C

1/8

1/4

1-1/4

STB-48D

1/8

1/4

3

STB-48E

1/8

1/4

6

STB-48L

1/8

1/4

12

STB-410A

1/8

5/16

1-1/2

STB-410B

1/8

5/16

3

STB-410

1/8

5/16

6

STB-410L

1/8

5/16

12

STB-412D

1/8

3/8

1

STB-412A

1/8

3/8

2

STB-412B

1/8

3/8

3

STB-412C

1/8

3/8

6

STB-412L

1/8

3/8

12

STB-416A

1/8

1/2

1

STB-416B

1/8

1/2

1-1/2

STB-416C

1/8

1/2

3

STB-416

1/8

1/2

6

STB-416L

1/8

1/2

12

STB-420

1/8

5/8

6

STB-420L

1/8

5/8

12

STB-424

1/8

3/4

6

STB-424L

1/8

3/4

12

STB-428

1/8

7/8

6

STB-432

1/8

1

6

STB-432L

1/8

1

12

STB-436

1/8

1-1/8

6

STB-440

1/8

1-1/4

6

STB-448

1/8

1-1/2

6

STB-456

1/8

1-3/4

6

STB-512C

5/32

3/8

6

STB-516

5/32

1/2

6

STB-520

5/32

5/8

6

STB-524

5/32

3/4

6

STB-528

5/32

7/8

6

STB-532

5/32

1

6

STB-536

5/32

1-1/8

6

STB-540

5/32

1-1/4

6

STB-544

5/32

1-3/8

6

STB-548

5/32

1-1/2

6

STB-564

5/32

2

6

STB-66L

3/16

3/16

12

STB-68A

3/16

1/4

3

STB-68

3/16

1/4

6

STB-68L

3/16

1/4

12

STB-610L

3/16

5/16

3

STB-610

3/16

5/16

6

STB-610L

3/16

5/16

12

STB-612A

3/16

3/8

3

STB-612

3/16

3/8

6

STB-612L

3/16

3/8

12

STB-616A

3/16

1/2

3

STB-616

3/16

1/2

6

STB-616L

3/16

1/2

12

STB-620A

3/16

5/8

3

STB-620

3/16

5/8

6

STB-620L

3/16

5/8

12

STB-624B

3/16

3/4

2

STB-624A

3/16

3/4

4

STB-624

3/16

3/4

6

STB-624L

3/16

3/4

12

STB-628

3/16

7/8

6

STB-632

3/16

1

6

STB-632L

3/16

1

12

STB-640

3/16

1-1/4

6

STB-640L

3/16

1-1/4

12

STB-648

3/16

1-1/2

6

STB-88L

1/4

1/4

12

STB-812A

1/4

3/8

3

STB-812

1/4

3/8

6

STB-812L

1/4

3/8

12

STB-816C

1/4

1/2

2

STB-816C

1/4

1/2

2

STB-816A

1/4

1/2

3

STB-816B

1/4

1/2

4

STB-816

1/4

1/2

6

STB-816L

1/4

1/2

12

STB-820A

1/4

5/8

3

STB-820

1/4

5/8

6

STB-820L

1/4

5/8

12

STB-824A

1/4

3/4

3

STB-824

1/4

3/4

6

STB-824L

1/4

3/4

12

STB-832

1/4

1

6

STB-832L

1/4

1

12

STB-840L

1/4

1-1/4

12

STB-1010L

5/16

5/16

12

STB-1212L

3/8

3/8

12

STB-1216L

3/8

1/2

12

STB-1224L

3/8

3/4

12

STB-1232L

3/8

1

12

STB-1616L

1/2

1/2

12

STB-1624L

1/2

3/4

12
